F-90 photo resin

                                                     Liquidpolymer@matrix

Good for mold & matrix making

@flexogroup is announcing a new product of F-90 liquid photopolymer resin which is good for casting / molding / casting industries and rubber stamp / plate making as a plate for matrix making. Low cost, water wash, easy operation and economic equipment capital investment are the merits. By only preparing a can of F-90, you can make hardness of 90 Shore A (32 Shore D) and heat resistance of 180 degree C to make any size mold or matrix plates you like in depth of 5mm.

Solid plate for matrix is getting less will disappear soon and the cost of it is higher and higher. By using liquid photopolymer the cost is only 30% of a solid photopolymer matrix plate. In addition, no more acid etching of metal plate in order to improve our environment green of no pollution. Due to new invention and innovation, from LaserBlack now you can have negative to make a plate quickly from your laser printer also due to @stampBag patented liquid photopolymer plate making new method, now it is very easy to make a plate in plant for molding, matrix or printing.

LaserBlack enhancer can make a negative by your own HP laser printer print on tracing paper or transparent film, go through our Enhancer then after drying it you will have a very black negative on hand in your plant for all of any plate exposure. www.laserblack.net

By an innovative concept of putting resin into a bag to pre-move the bubbles to save your processing time, @stampBag is a total new solution for you to make a plate from liquid photo resin quick, easy with clean hands. The equipment is available from A4 size to A3 and any bigger size as you wish for mass production.







                       Compacted 4 in 1 design table top plate making machine for liquid photopolymer matrix plate

                          Machine including: Exposure / washout / drying / anti-tack complete functions in one unit

                             Innovative matrix plate



       Advantages and features

 Liquid Polymer Matrix Plate Making

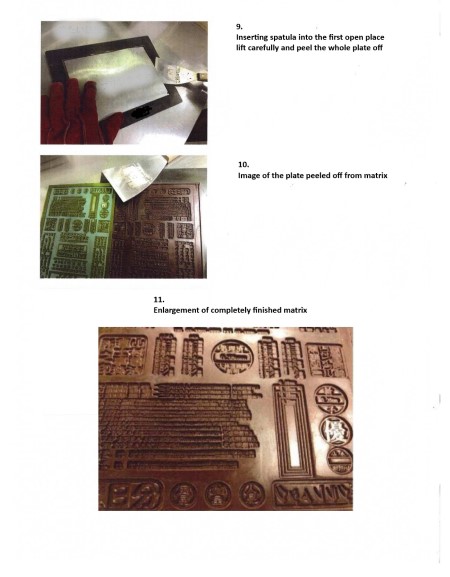

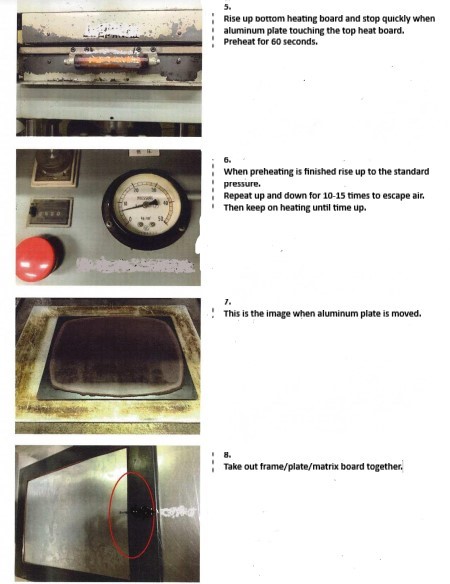

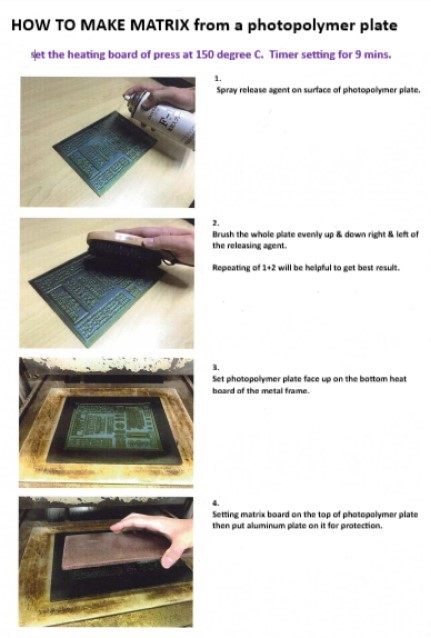

                                 HOW TO MAKE MATRIX

         from a photopolymer plate



           Compacted 4 in 1 design table top plate making machine for liquid photopolymer matrix plate.

          Machine including: Exposure / washout / drying / anti-tack complete functions in one unit.

          Enable simple / easy / quick / convenient / clean operations for liquid matrix plate making.

          Free thickness, any size as you like to make matrix plate in your plant quick and economically.

          Don’t have to prepare lots of different thickness and size photopolymer plate in your stock.

          Using base film good for back exposure and easy cut to size not difficult as metal based plate.

          Any gauge matrix plate up to 7 mm at low cost as you like. No more expensive metal etching.

          UV curing to harden the image and washout only by water green and no pollution any more.

          Excellent heat conduction and transfer clear image. Base film heat resistance 190 degree C.

          Cost is only 1/3 of photopolymer matrix plate. Product quality is perfect enough to replace.



                         Cost is only 1/3 of photopolymer matrix plate. Product quality is perfect enough to replace.



      How to do when MATRIX PLATE is out of market

                   YOUR SMART CHOICE INSTEAD



                  Liquid photopolymer matrix plate

                        FOR MATRIX MAKING



                     Liquidpolymer@matrix

             Heat resistance 180 degree C         Good for stamp matrix making



             Melting point 260 degree C             Logo / marking for iron casting

                              No more zinc or magnesium plate etching

                             Any gauge any size free for you to process

                           BY UV EXPOSURE AND WATER WASHOUT

                      Quick / Convenient / Environment green / Low cost
